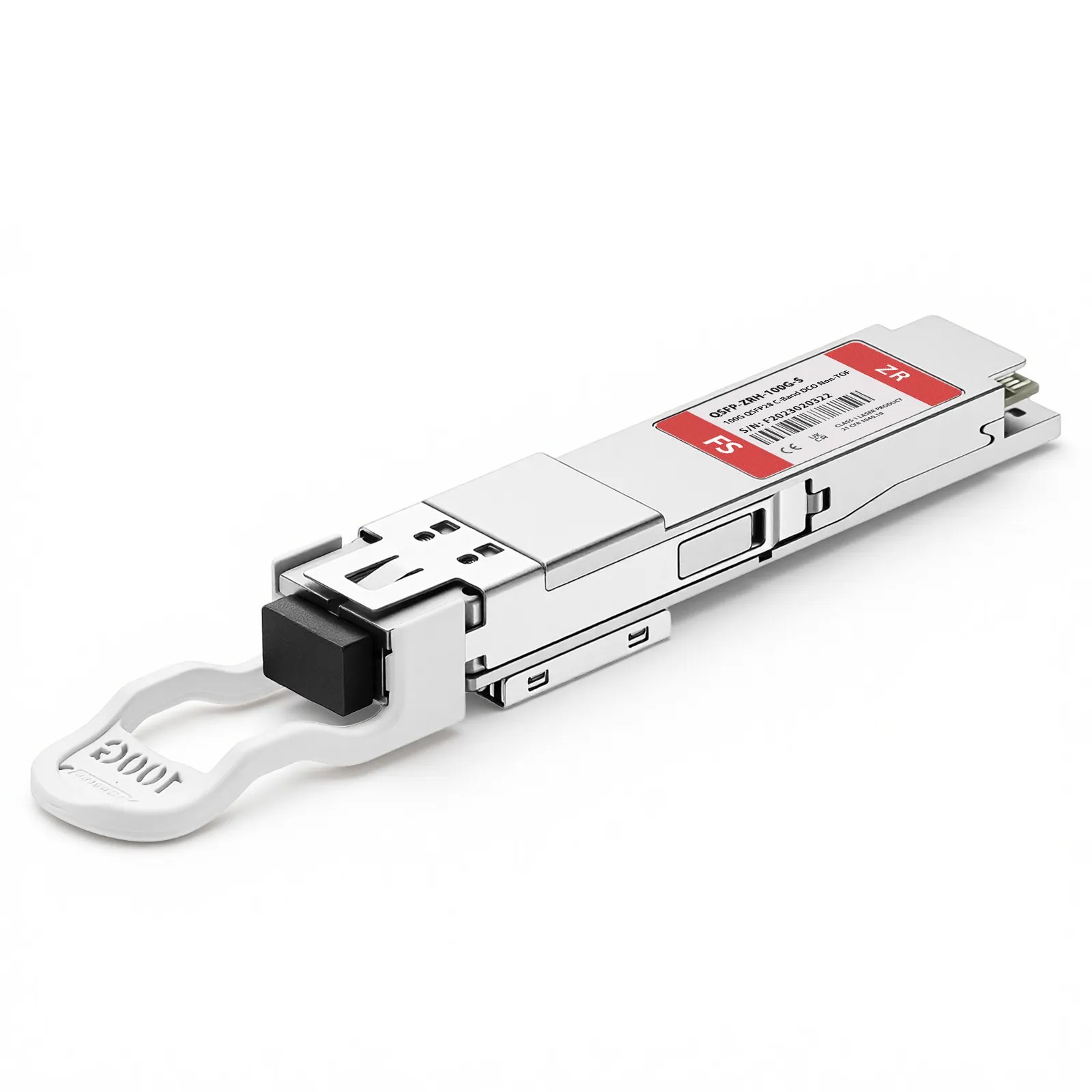

QSFP-ZRH-100G-S Совместимый с Cisco QSFP28 высокомощный без TOF DCO 100G DWDM C-диапазон настраиваемый когерентный ≤120 км дуплексный LC/UPC SMF трансиверный модуль

Part Number: — QSFP-ZR-100G-S

Vendor Name: — FS

Form Factor: — QSFP28

Max. Data Rate: — 100Gbps

Wavelength: — C-Band 5THz DWDM Tunable

Max. Cable Distance: — 80km (unamplified) 120km (amplified) 300km (amplified and DCM)

Connector: — Duplex LC/UPC

Media: — Duplex SMF

Transmitter Type: — Coherent

TX Power: — -8~-4dBm

Minimum Receiver Power: — -30dBm

Power Budget: — 22dBm

Receiver Overload: — 3dBm

Max. Power Consumption: — ≤5.5W

Inbuilt FEC: — RS (528,514), SC

DDM/DOM: — Supported

Commercial Temperature Range: — 0 to 70°C (32 to 158°F)

CD Robustness: — 100G DQPSK SC: 16.5dB/0.1nm 100G DQPSK RS: 21.5dB/0.1nm

OSNR Tolerance: — Default, OSNR penalty <0.5dB: 2.4ns/nm Extended, OSNR penalty < 1.0dB: 6.0ns/nm

Modulation Format: — NRZ, DP-DQPSK

Protocols: — IEEE 802.3™-2022, 100GBASE-ZR, CMIS, SFF-8024
